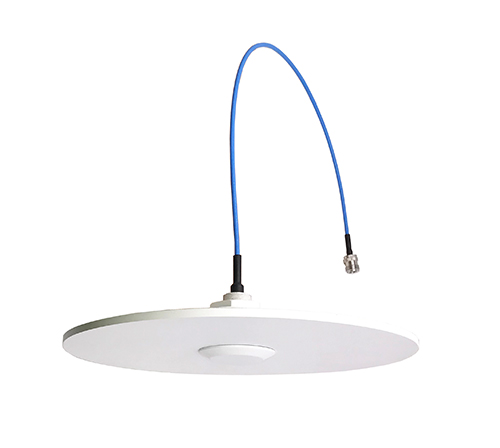

Omni Ceiling Antenna, Thin Type, Low PIM, 300MHz to 6000MHz
Model : OC0360G7

Indoor/in-building Coverage/ iDAS

5G,LTE, 3G/UMTS, WiFi, ISM Application

PDF Download

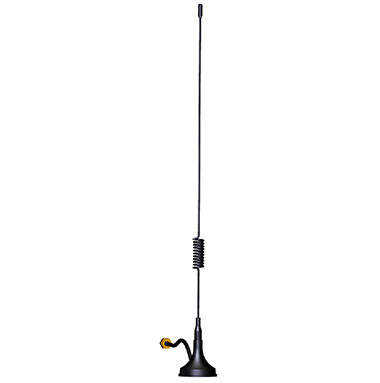

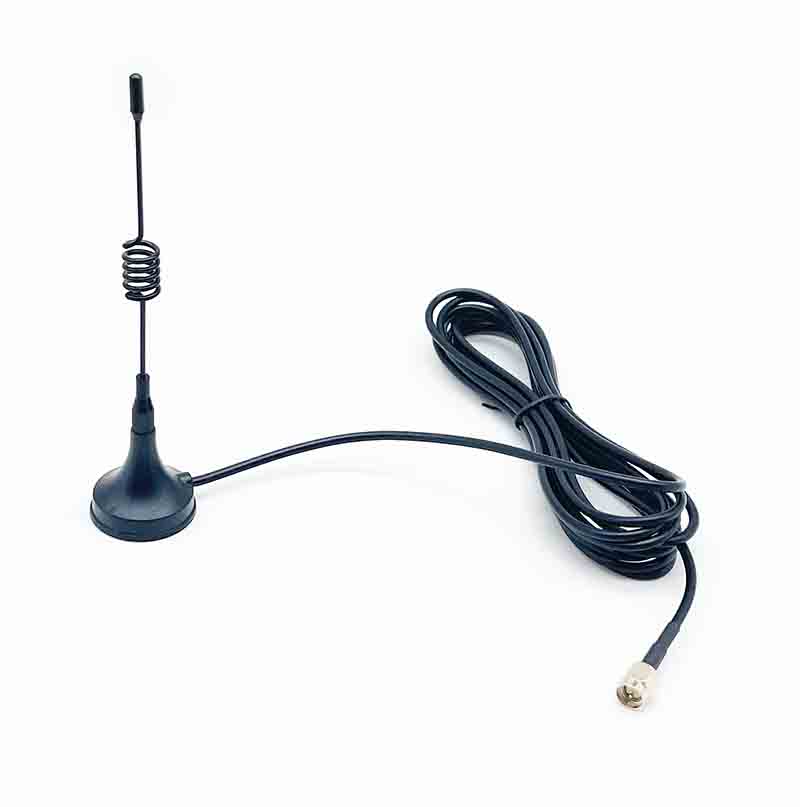

Mini Omni Antenna, Magnetic Mount, Wideband, 400-470MHz, 3dbi
Model : OM450G3





Vertical Polarized; 400-470MHz, Diameter: 30mm, Height:130mm

With Pigtail: 0.6m/1.5m/3m; Connector Customized: SMA/MCX/TNC~

PDF Download

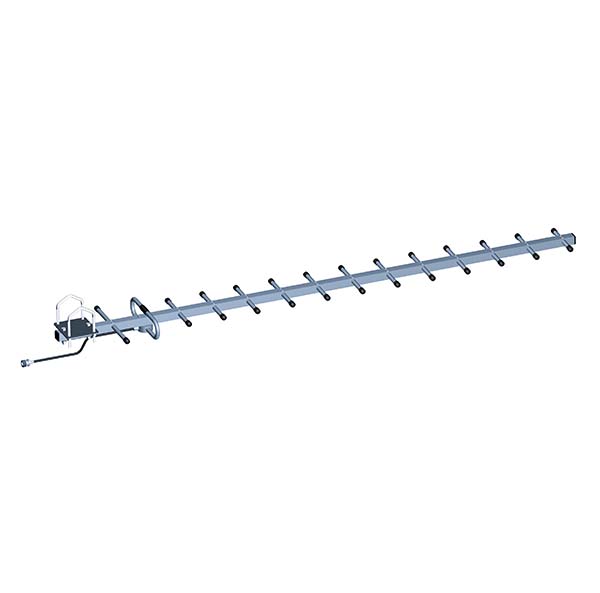

Yagi Antenna, Directional, 790-960MHz, Point to Point, Point to MultiPoint
Model : DY0709G14

High gain for excellent point to point

Narrow beamwidth and High F/B ratio minimize other system interferenc
PDF Download

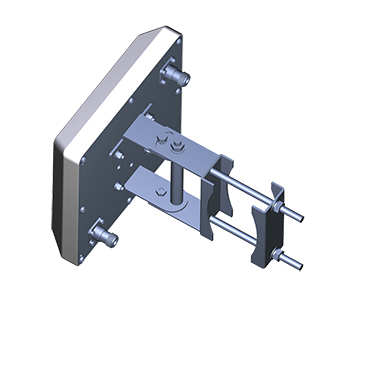

Panel Antenna, Circular Polarized, Directional, RFID 915MHz, ISM Band
Model : DP915G9-C

Circular Polarized ( LHCP or RHCP ), 902-928MHz, 9dBi

Engineering Plastic Radome: ASA; Stainless Steel Mount, Horizontal and Vertical Adjustable

PDF Download
Small Cell Antenna 2x2 MiMO, High Gain, 698-3800MHz
Model : DP0738G11-2A

+45° / -45° Polarization, Multi-Bands 698-960MHz, 1650-2690MHz, 2690-3300MHz, 3300-3800MHz, Max Gain 11dBi,



5G 4G Indoor/in-building, Outdoor Coverage




PDF Download

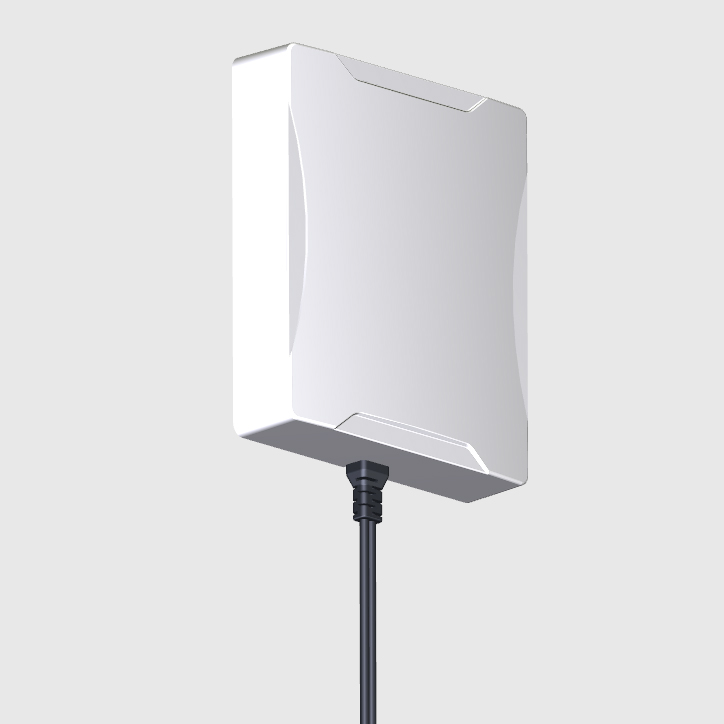

Small Cell Antenna, 4x4 MiMO, 600-7200MHz, Directional
Model : DP0670G10-4A

Hybrid Linear Polarized, Multi-Bands 600-960MHz, 1650-2690MHz, 2690-3300MHz, 3300-3800MHz, 3800-7200MHz




5G  / LTE / 4G Indoor/in-building, Outdoor Coverage




PDF Download

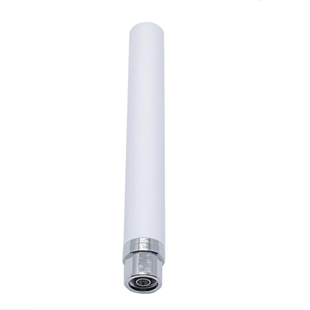

Omni Antenna, 2.4GHz/5GHz Dual Band, Wideband, High Gain 4.6dbi/7dBi
Model : OA2450-7-NM

Usable Bands: 2400-2500MHz & 4900-6000MHz


Compatible with 2.4/5GHz 802.11n devices,


IP67 Case Protection, all weather operation

PDF Download

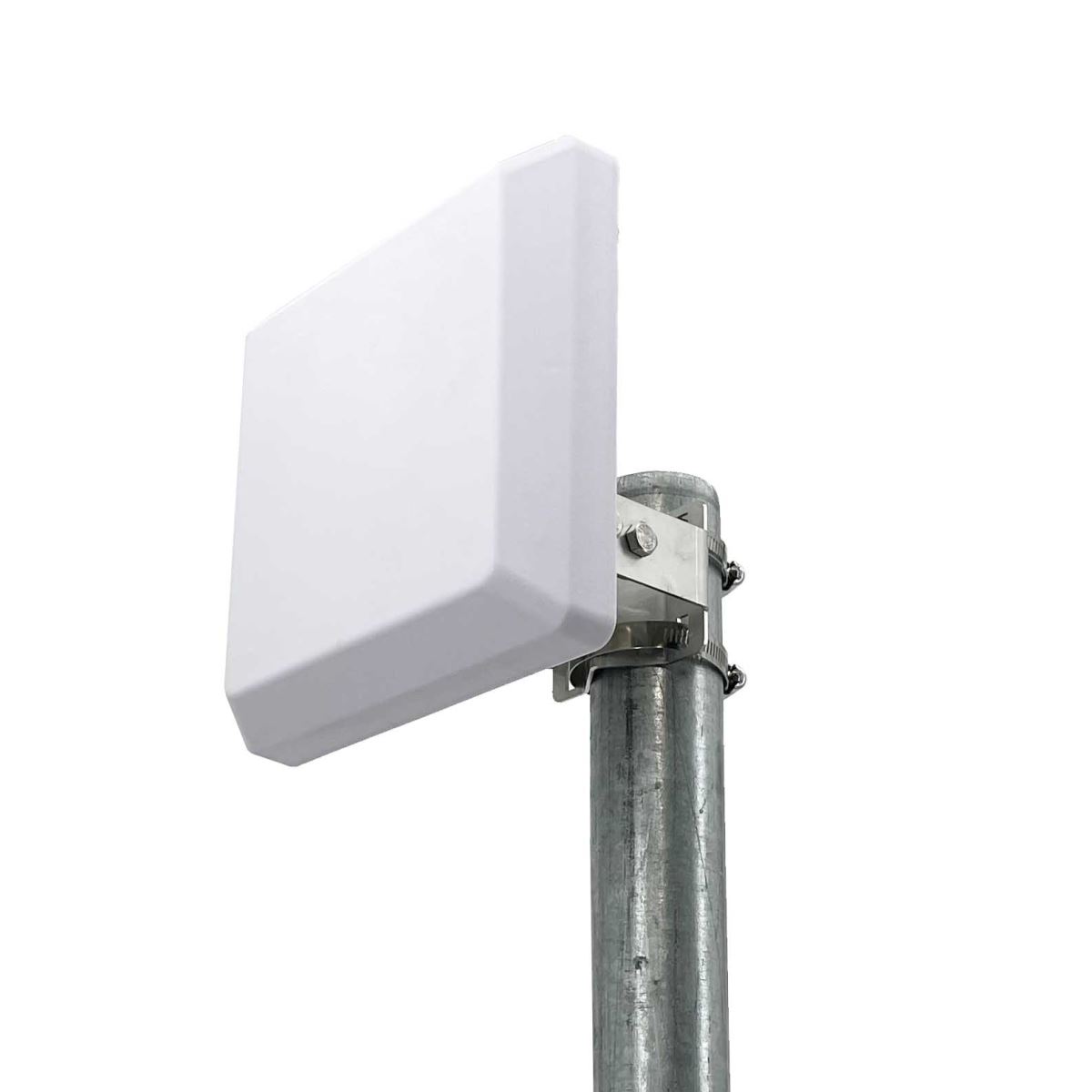

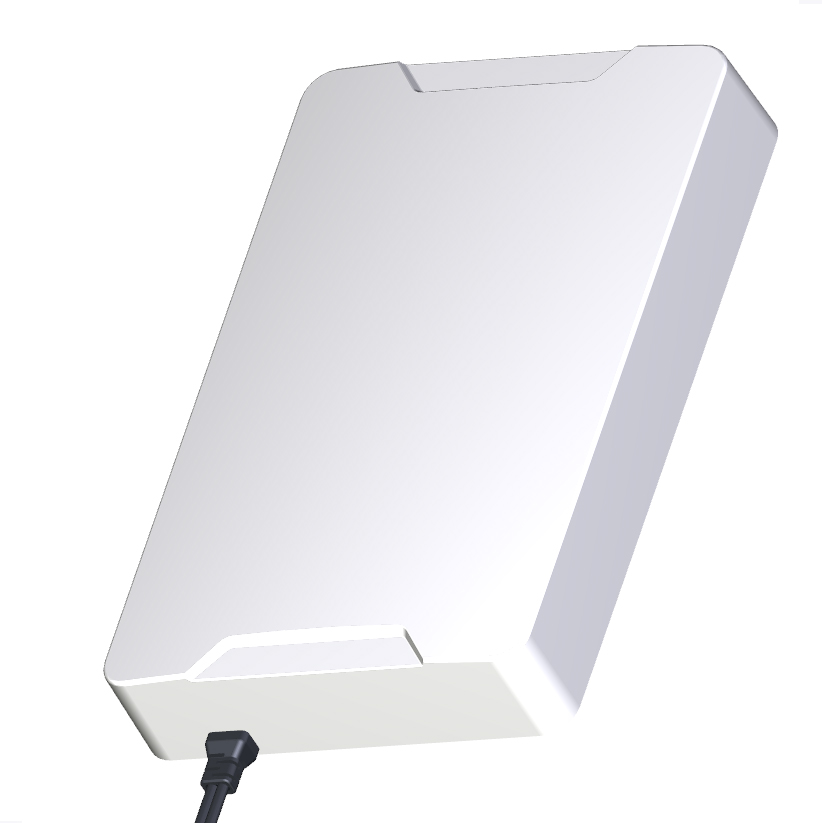

2x2 MiMO Panel Antenna, Directional Coverage, Indoor or Outdoor
Model : DP0642G9-2A

Dual Linear, Multi-Bands 600-960MHz, 1450-2690MHz, 2690-3300MHz, 3300-4200MHz, Max Gain 9dBi,

5G 4G Indoor/in-building, Outdoor Coverage

PDF Download

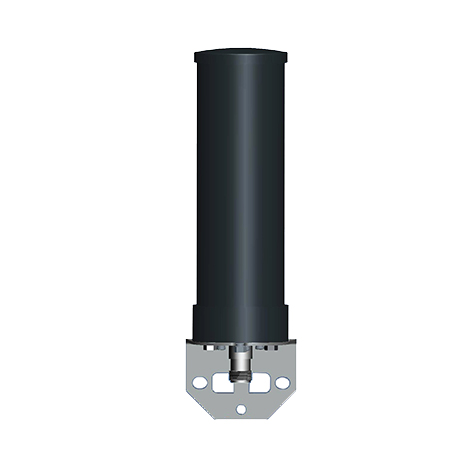

5G/4G/LTE/3G/WiFi/IoT/ISM, 600MHz to 6GHz, 360deg Coverage
Model : OA0660G4-NF / OA0660G4-SF

Decription: Wideband 600MHz to 6GHz, Vertical Polarized; Gain: 2dBi~6dBi

With Multi-mount Bracket: wall, Pole, Ground plate

PDF Download

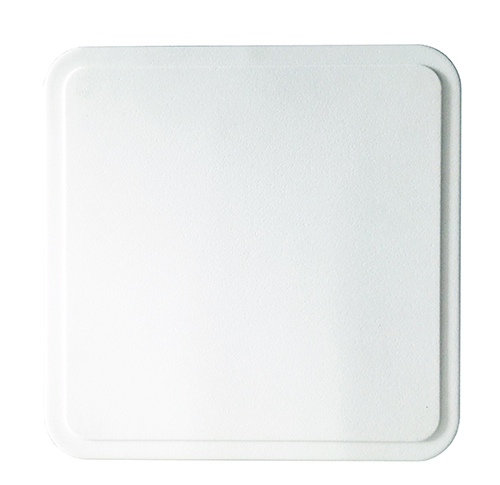

MiMO PANEL ANTENNA, 1710-2700MHz
Model : DP1727G9P2

Dual Polarized:X-Polarized/±45deg, 1710-2700MHz x 2, Max Gain 9.3dBi x 2, Size: 208x208x45mm, ASA Radome

PDF Download

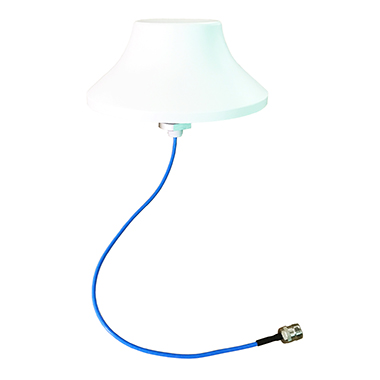

Omni Ceiling Antenna, VHF & UHF Bands
Model : OC0110G1
Vertical Polarized,134-960MHz, Max Gain: 1dBi,
PDF Download
Omni Antenna, Mini Magnetic Mount
Model : OM0727G5M

Vertical Polarized; 698-2700MHz, Diameter: 30mm, Height:260mm

With Pigtail: 0.5m/1.5m/3m; Connector Customized: SMA/MCX/TNC~

PDF Download
Omni Antenna, Adhesive Easy Mount, Global Mobile Broadband
Model : OH0738G3

Vertical Polarized, 698-960MHz; 1710-2700MHz, 3300-3800MHz, Dimension: 115x22x6mm

Cellular IoT Applications

PDF Download

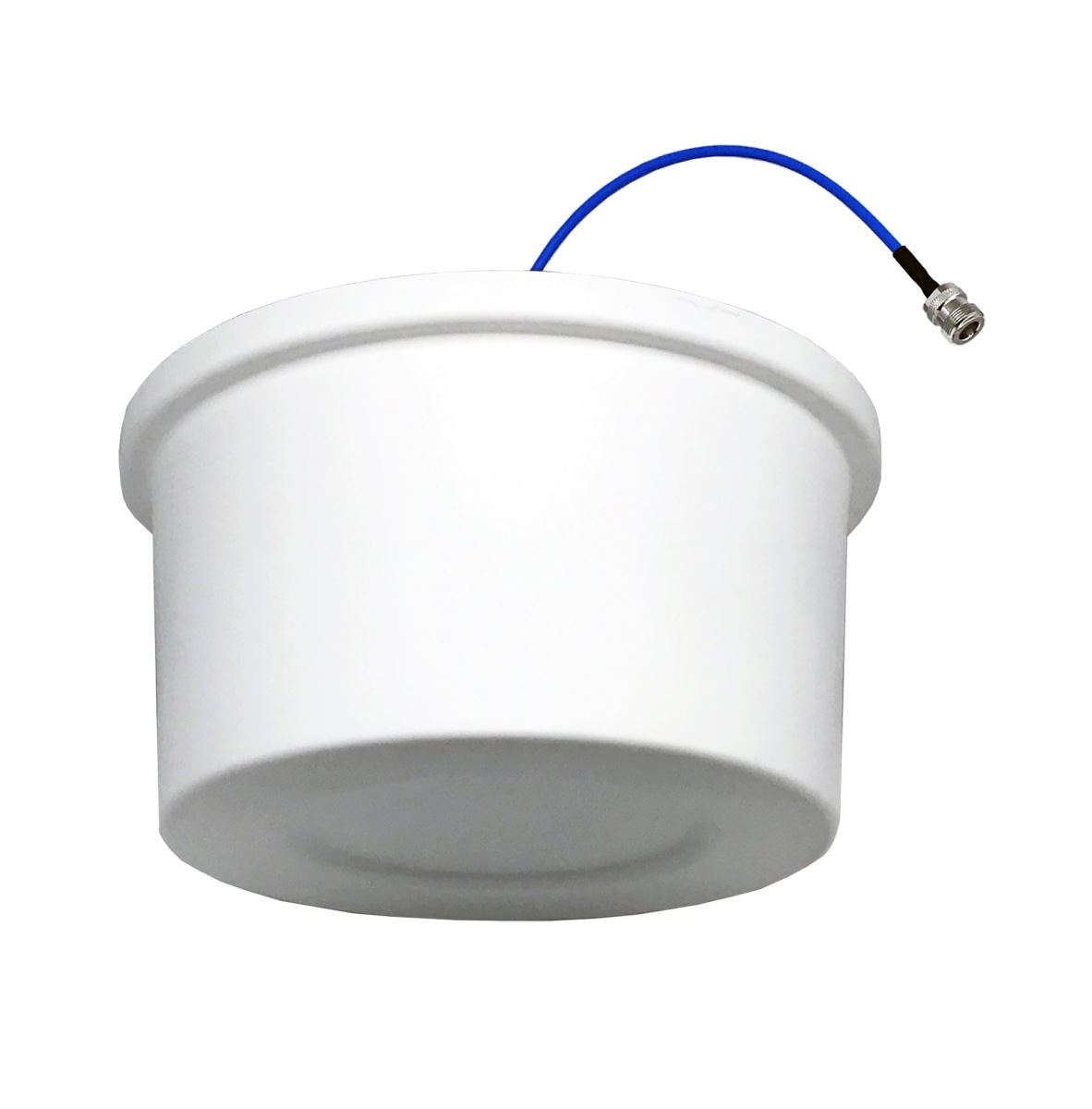

Omni Ceiling Antenna, Ultra wideband, Low PIM, 300MHz to 6GHz
Model : OC0360G8-N or OC0360G8-4310

Vertical Polarized, 300-6000MHz, Bandwidth: 5700MHz; 1~8.5dBi, Diameter: Φ295×159mm

PDF Download

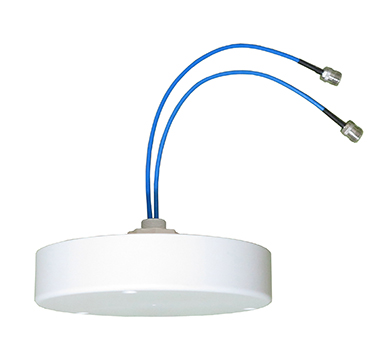

MiMO Omni Ceiling Antenna, Flat Version, Ultra Bands, Low PIM
Model : OM0645G6P2-N and OM0645G6P2-4310

Dual Linear, 600-4500MHz x 2, 2dBi~6.7dBi, Diameter: Φ220×45mm

5G/LTE/CDMA,GSM, DCS, 3G/UMTS, WiFi, ISM Application



PDF Download

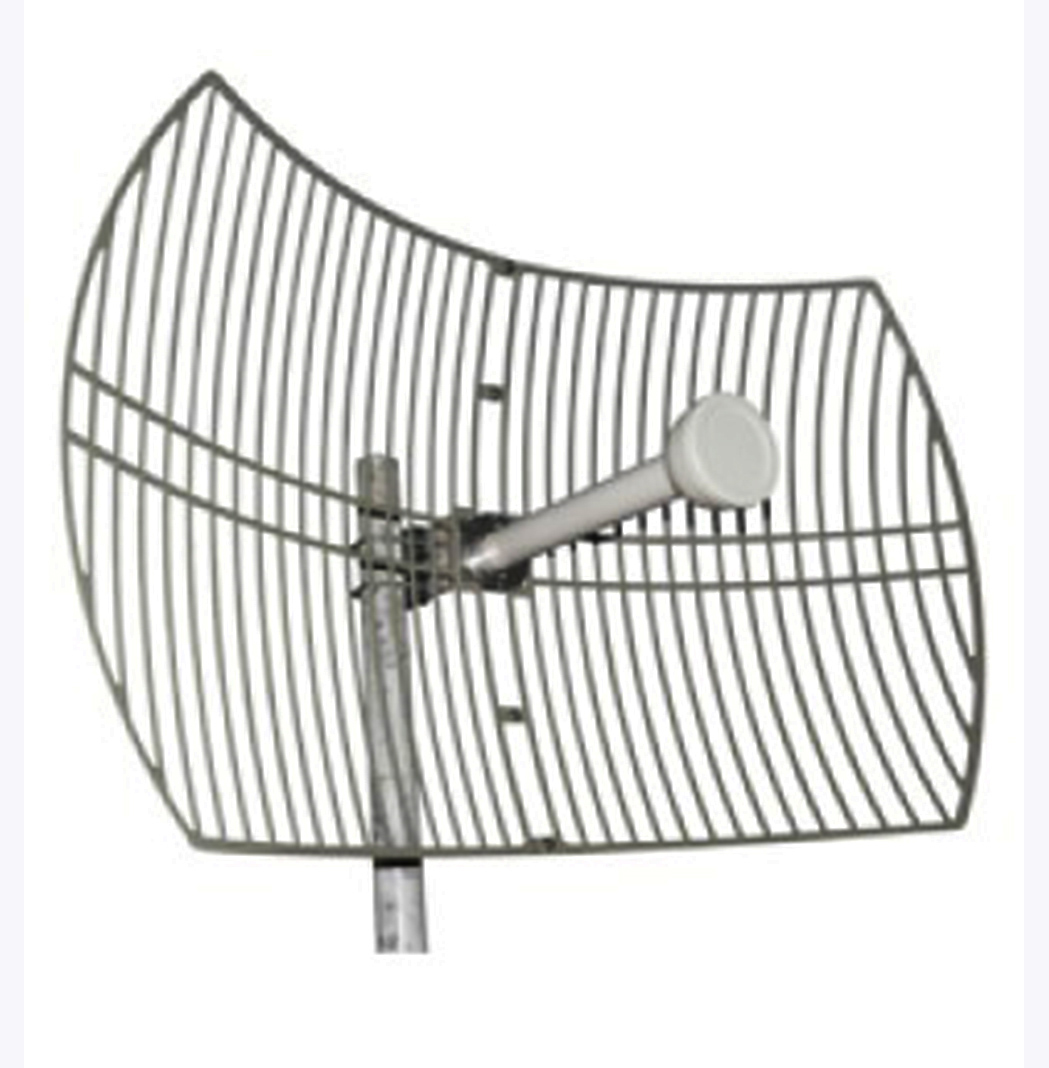

3G/4G LTE MiMO Grid Antenna
Model : DG1727G24

Dual Pol: V-Pol & H-Pol or ±45° X Polarization, ultra wideband: 1710-2700MHz, 23~26dBi, Diameter: 600x900mm

PDF Download
